>>Parameter:
Model: G60
IP Rating: IP54
Laser class: Class 2 (IEC/EN 60825-1:2014)，<1mW
Laser Wavelength: 505-520nm
Horizontal/Vertical Accuracy: ±1.5mm/7m
Self-leveling Range: ±4°
Mount Size: 1/4 »
Leveling Type: Gravity pendulum
Working time (with all laser beams on): About 5 hours
Working range (Radius): 30m/(2-60m with FD30)

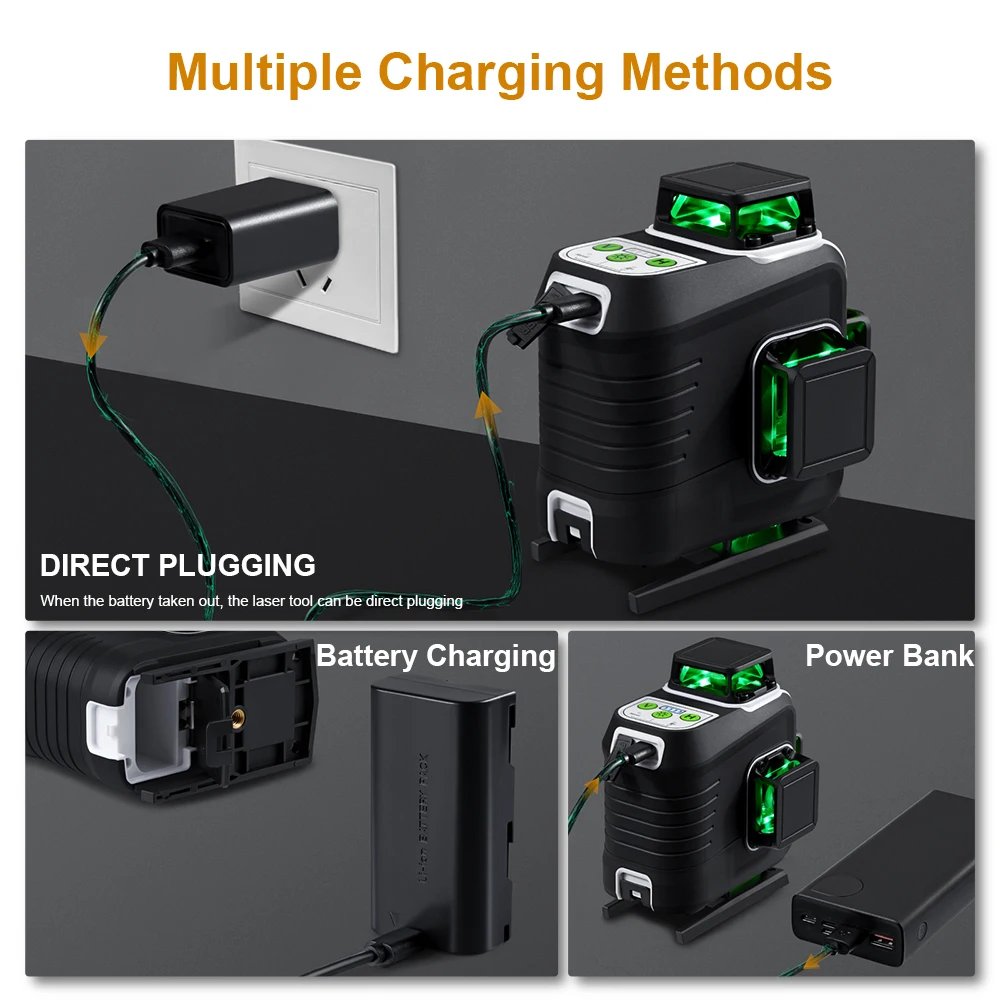

Power supply:Rechargeable 4000mAh lithium battery
Power type: EU plug (send EU plug by default, if you need other plugs, please contact customer service)
Maintenance and after-sales: 1 year warranty

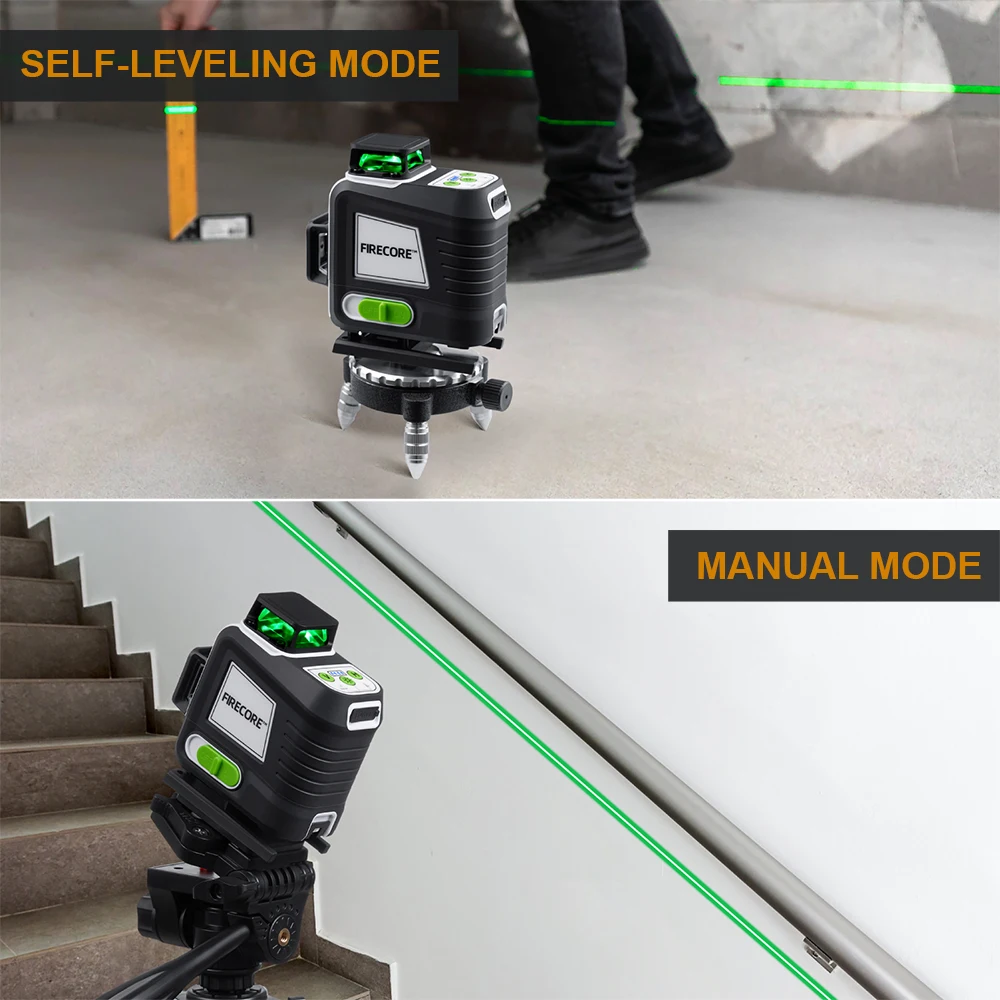

>>Self-leveling mode:
On state, the instrument will be self-leveling within 4°, when the instrument is using out of the leveling range, laser lines will keep flashing quickly.
>>Manual mode:
Off state, press and hold the middle button for about 3 seconds, the left side indicator will turn green.The laser line flashes slowly and can be operated at the angle you choose, Single-press middle button to adjust brightness cyclically, three gears are available. To turn off the measuring tool, just press and hold the middle button for 3 seconds.

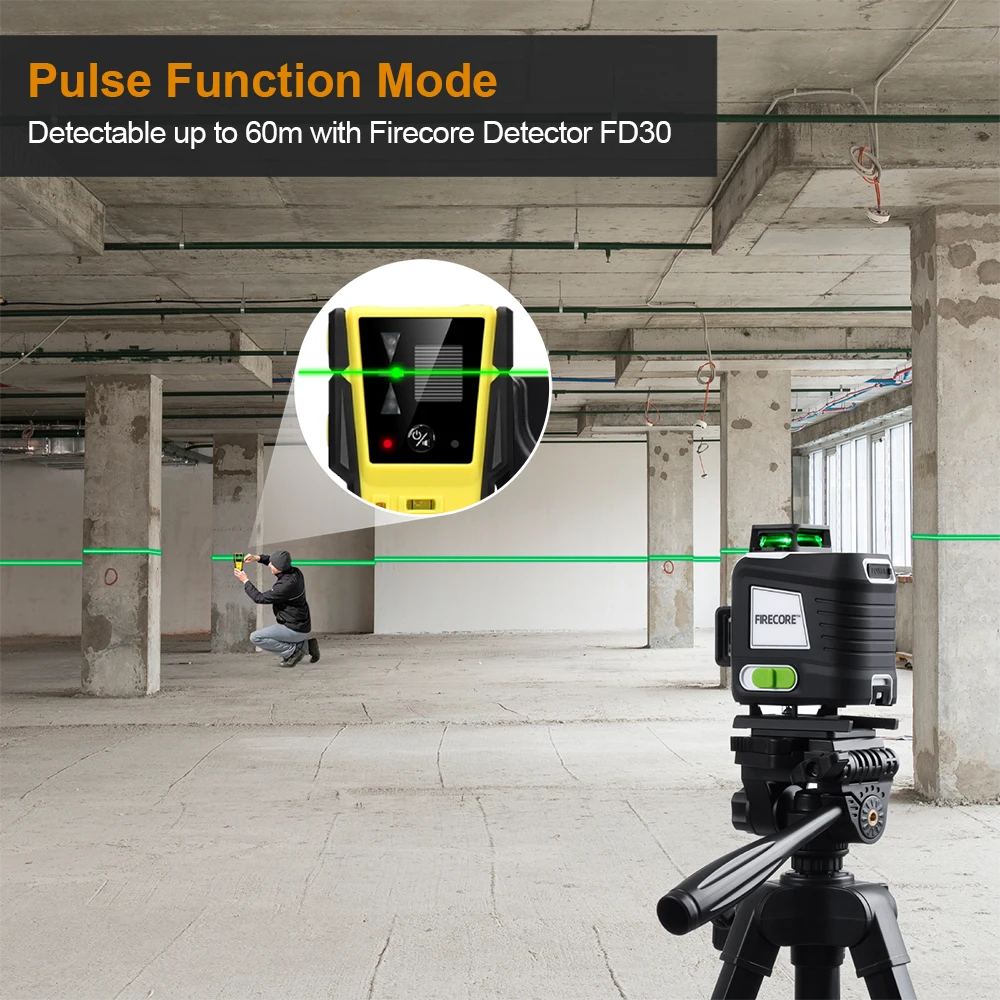

>>Pulse mode:

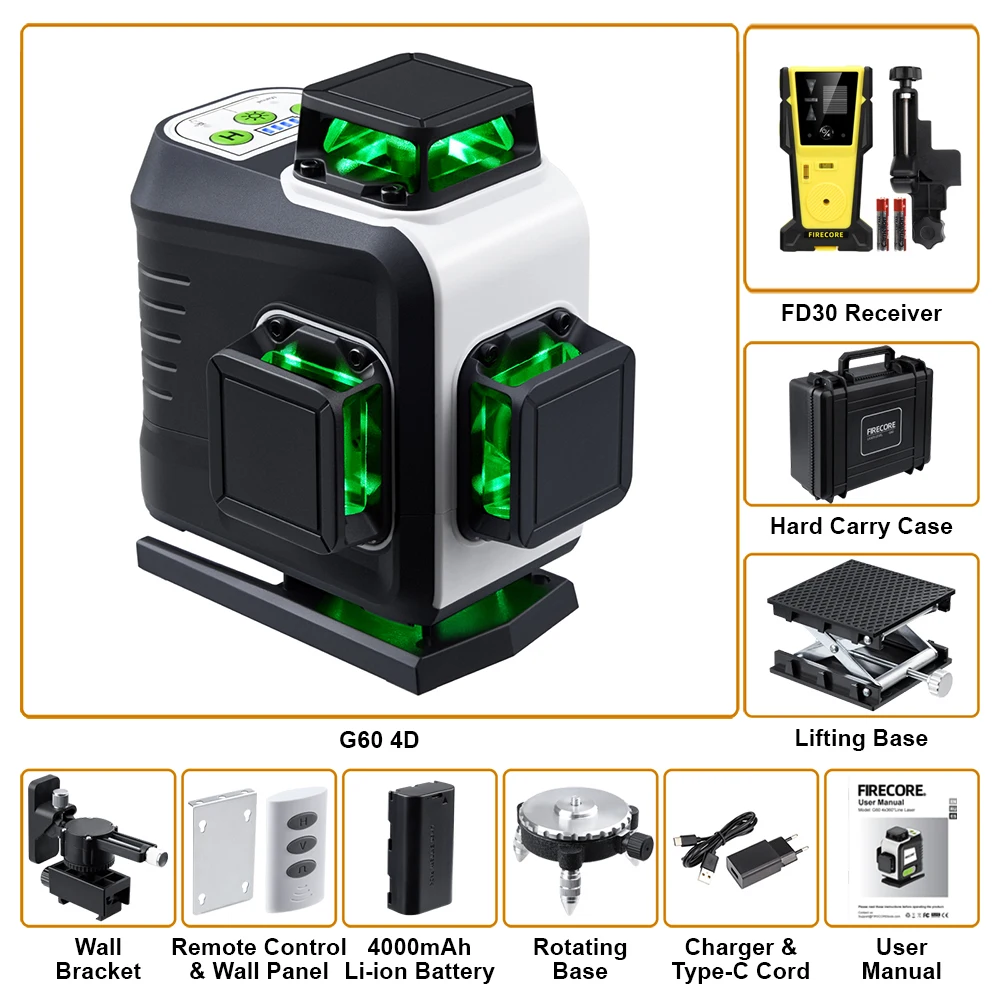

How to use the FD30 receiver with G60 laser level?
1: First, turn on laser level’s pulse mode——Single press middle button to enter the pulse mode, the right side indicator light will turn green.
2: Second, turn on the FD30 receiver and search the laser lines. When the receiver detects the laser lines, it will make « Beep » sounds. it can turn off the sound.If you don’t use the receiver for more than 5 minutes, it will shut down automatically
